Compact Substation Transformer

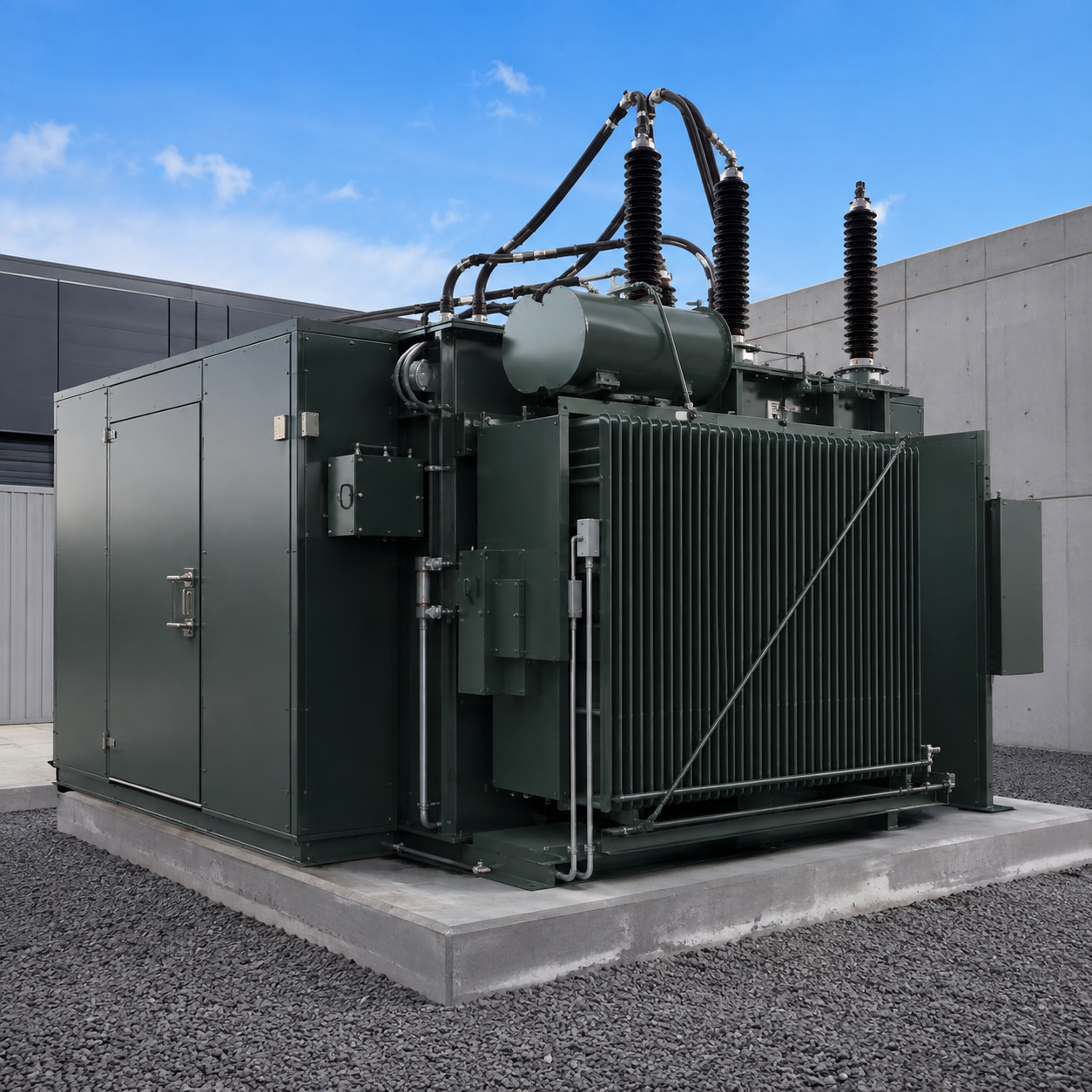

Compact Substation is a complete substation packaged into one enclosure, integrating the switchgear and transformer required to receive medium-voltage power and deliver low-voltage electricity efficiently and safely. It is widely used where space is limited and quick deployment is important.
| Parameter | India Standard | USA Standard |
| Power Rating | 100–2500 kVA | 75–5000 kVA |
| Primary Voltage | 11 kV / 22 kV / 33 kV | 12.47 kV / 13.2 kV / 13.8 kV / 24.9 kV / 34.5 kV |
| Secondary Voltage | 415/240 V | 120/240 V, 208Y/120 V, 480Y/277 V |
| Phase | Three Phase | Three Phase |
| Frequency | 50 Hz | 60 Hz |
| Transformer Type | Oil-Filled or Dry-Type | Oil-Filled or Dry-Type |
| Cooling | ONAN / AN | ONAN / AN |
| Standards | IS 14786, IEC 62271, IS 2026 | IEEE C57 Series, ANSI, NEC |
| Enclosure | Outdoor, IP54/IP55 | Outdoor, NEMA 3R |
A compact substation transformer is an integrated power distribution solution designed to combine transformer and associated electrical equipment within a compact footprint. It can be suitable for applications where space, installation efficiency, and equipment integration are important.
Yes. Compact transformer solutions can be used in renewable energy applications such as solar and other distributed power projects, where electrical energy needs to be transformed and distributed within a space-efficient system.
A conventional substation transformer is generally installed as part of a larger substation arrangement, while a compact transformer solution integrates equipment into a more space-efficient configuration. The appropriate design depends on voltage, capacity, protection requirements, available space, and site conditions.
